Acts as a narrowband shunt filter, creating low-impedance paths for unwanted frequencies while maintaining high impedance at 60 Hz. Selectively resonates at the 3rd harmonic band to absorb and extract distortions locally, then pushes them into harmonic levels for upstream cancellation.

Three proprietary hardware elements work in combination to achieve precision narrowband filtering at the load level, extracting harmonics before they can propagate upstream into the distribution network.

VFDs, UPS systems, LED drivers, and switch-mode power supplies inject odd-order harmonics that the XECO600 specifically targets and removes from the waveform before they reach the transformer.

Cancels harmonic current by injecting current of equal amplitude and reverse phase across the 2nd–51st harmonic order. FFT logic processes the full harmonic spectrum with greater than 97% compensation accuracy. Sub-cycle reaction time of less than 50µs ensures no lag under dynamic load changes.

The built-in Static Var Generator delivers programmable reactive power compensation alongside harmonic filtering. This eliminates the need for traditional capacitor banks, which only fix displacement PF, degrade within 2–3 years, and can amplify harmonics through resonance.

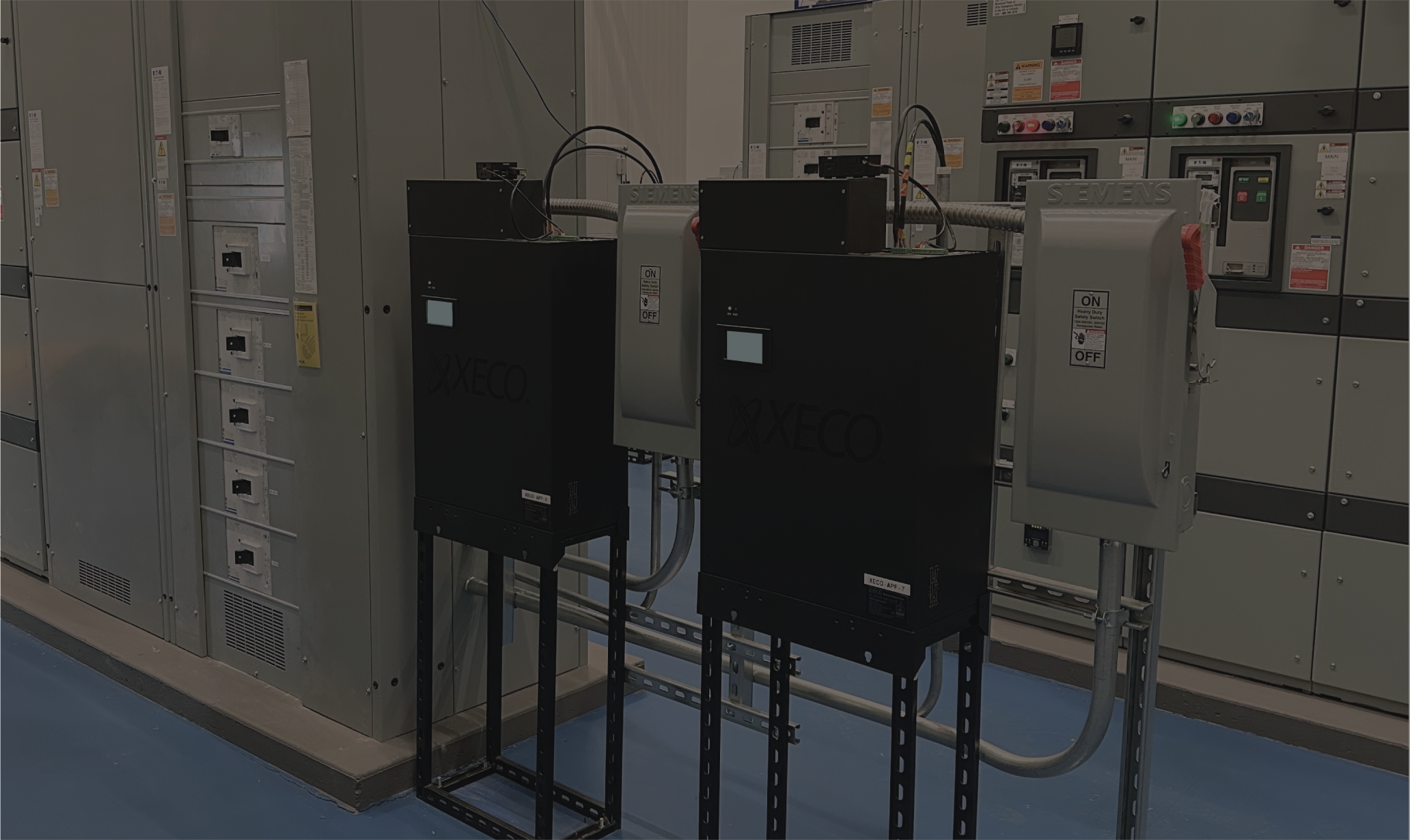

Four models cover indoor and weatherproof installation across 50A and 100A capacity ranges. All models share identical compensation performance and can be mixed and expanded without quantity limits.

Dynamically monitors the network via Class A or Class 0.2 accuracy metering at 20,000 samples per second. Manages four priority levels to optimize system response in real time. Coordinates XECO600 and XPF480 continuously, adapting to changing load conditions without manual intervention.

Every unit in the ECBS system communicates via a wireless mesh network and connects to the Xeco Energy Portal for real-time monitoring, historical analysis, multi-site management, and remote on/off testing.

Class A or Class 0.2 metering accuracy enables the system to anticipate equipment failures before they occur. Historical meter data supports compliance reporting, before/after verification, and ROI validation tied directly to capacity recovery metrics.
